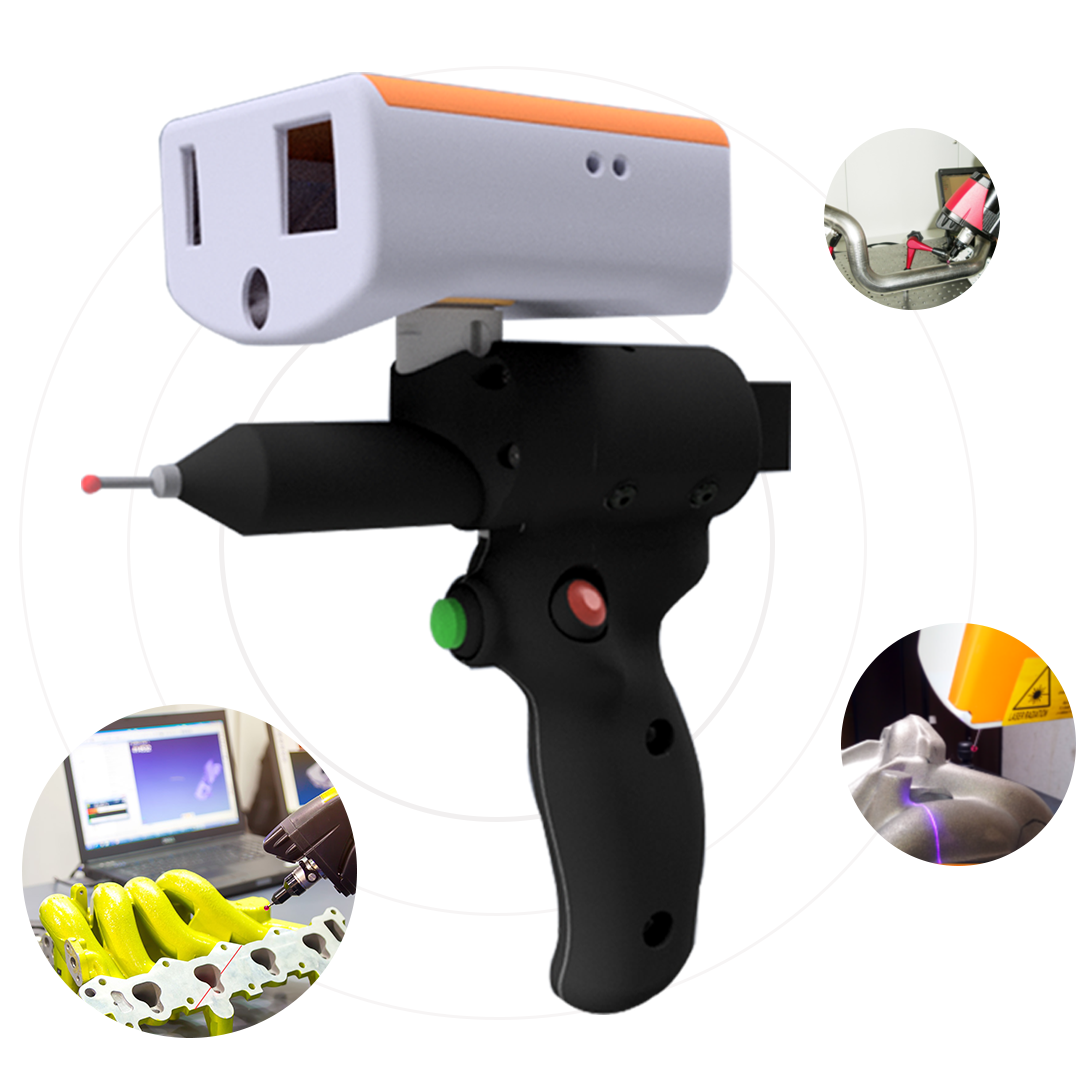

About the Product

  • This is a 3D optical Measurement system

    Portable, mobile and easy to use Measurement system

    This product can be used in following lines

    • 3D-Echtzeit-scannen
    • 3D-Rohrinspektion
    • Freeform Tube 3D – Scannen
    • 3D Inspektion & CAD Vergleichen
    • Reverse Engineering
    • Einfache Kalibrierung
  • Ergonomische robuste Klassisches Design, nutzt erweiter CMM Arbeitsplatz
      Ergonomic rugged classic design, utilises extended CMM workspace
  • High-Speed-Ethernet-Schnittstelle zum Host-PC

      High speed Ethernet interface to host PC



Features

Spezifikation | Specifications

blue or red

PRECI KLP25

preci klp 50

preci klp100

Linienbreite | Line Lenght

25mm

50mm

100mm

Punktauflösung | Point Resolution

19µm

39µm

78µm

Messabstand | Standoff Distance

66mm

95mm

240mm

Messfeld | Measurement Field

26mm

60mm

265mm

Laserklasse | Laser Class

2M - Standard 20mW | 3R - Optional 66mW

CNC Controller | CNC Controller

Renishaw - PH10M & Pantec - Eagle Head

Scanner Interface | Scanner interface

Ethernet & PRECI Multiwire & PICS

Betriebsmodus | Operation Mode

JoyStick | CNC

Software | Software

Polyworks , Multisoft, 3D Reshaper, Geomagic

PC Interface | PC Interface

Win 7 or Higher & high end graphic card

Betriebstemperatur | Operating Temperature

10°c to 35°c

Lagertemperatur | Storage Temperature

-20°c to 70°c

Transportkoffer | Transport Case

445mm × 345mm × 125mm
