Optical CMM

Preci 3d track optical tracker has large measurement volume, field of view and range of 6 meters, Wireless & armless - freedom of movement, Aio- all-in-one compact design compact Quick setup and easy to transport Up to 100 microns (0.004 inches) in target area, Dynamic measurement and tracking of moving objects, Real-time 3d tracking, Best-in-class value and attractive roi, Multi camera system possible for object sizes.

About the Product

PRECI 3D GUN is a multi-face and light weight touch measurement tool for PRECI 3D TRACK system. It is ergonomically designed tool to fit most of the measurement tasks.

It has active emitters on its all three faces which gives the user more degrees of freedom.

PRECI 3D GUN comes factory calibrated and it doesn’t need daily calibration.

An optional, easy to use tool is also provided along with the PRECI 3D GUN on user request to check the scanning quality and to calibrate by self if higher accuracies are needed.

This tool communicates with the camera using radio frequency and emitters work on infrared.

Features

Taktil measurement of parts

Mobile and flexible measurement

Quality control of Robot Carriers, industrial parts, Automotive parts, etc.​

Windows Tablet compatible

Robot Path Programming Complex tasks like welding, milling and measuring can be easily taught within 0.1mm of accuracy.​

Specifications

PRECI 3D TRACK 900MM

PRECI 3D GUN is a multi-face and light weight touch measurement tool for PRECI 3D TRACK system. It is ergonomically designed tool to fit most of the measurement tasks. It has active emitters on its all three faces which gives the user more degrees of freedom.

Accuracy 60μM(2σ)
Speed Up to 1kHz
Dimension(mm) 900 x 100 x 100
Measurement Volume (M) 4.0 x 2.7 x 2.5
Weight Ca. 8 kg
PC Interface USB 2.0 & USB 3.0
Calibrated Volume 1) 1.0M – 2.5 m (Default)
2) 1.0M – 3.5 m (Optional)
3) 2.2M – 4.7 m (Optional)
Software Interface FreeHand MultiSoft | PowerINSPECT | Geomagic | 3D – Reshaper | br Inca 3D | PolyWorks | Point Master | Rhino |SolidWorks – RevWorks | HighRES | Mercator | Eureka – Roboris
MeasurmentTool PRECI 3D GUN | 1D – 2D – 3D PRECISCAN | Custom Tools
Number Of Ports 2 Wired (4 Max.) | 2 Wireless
Poly PRECI Trackers 0.Master – 1. Slave – 2.Slave – 3.Slave …n (For Complex & Big Sized Parts)
Working Temperature 16°c to < 35 °c

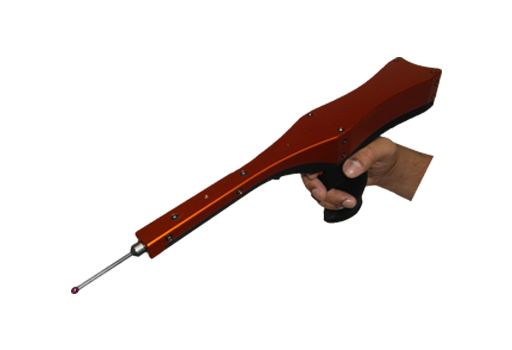

PRECI GUN

PRECI 3D GUN is a multi-face and light weight touch measurement tool for PRECI 3D TRACK system. It is ergonomically designed tool to fit most of the measurement tasks. It has active emitters on its all three faces which gives the user more degrees of freedom.

IR Sensors 18 OGM
Communication WireLess (RF)
Faces 3 (Auto Select)
Tip M5 Ruby Ball & Sharp Tip
Buttons 2 Ergonomic Buttons(3 Max.)
Power Compact Mobile Charger
Working Time >6hr when fully charged
Calibration Only Factory Calibration (User Calibration Correction Module Avaiable)
Transport Specially Designed Protective Case
Add On Module Infrared Fork (Especially For Tube Inspection)

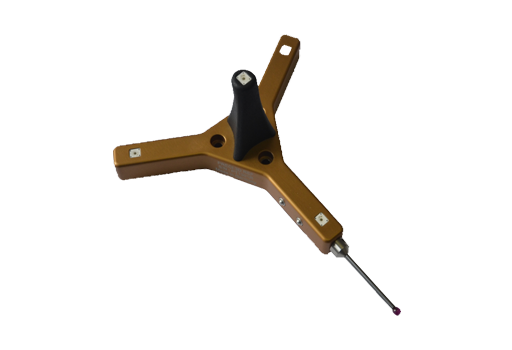

PRECI 3D REF

The PRECI 3D REF is a tool which can track any object it is attached to, without changing its original coordinate frame. It helps when bigger parts are to be measured. This tool can be useful mainly if one has a complex part which should be scanned from both sides and visibility is an issue then attach the DRF to the part and the part can be moved while measurement process. Or if the part is heavy one can move the tracker while measurement process without extra leap frogging operations.

IR Sensors 4 IR Sensors*
Communication WireLess(RF – Radio Frequency)
Faces Single Sides
Tip M5 Ruby Ball & Sharp Tip
Buttons 2 Ergonomic Buttons(3 Max.)
Speed ~ 200 HZ
Calibration Only Factory Calibration (User Calibration Correction Module Avaiable)
weight < 0.2 kg
Add On Module Multiple PRECI 3D REF, PRECI 3D GUN, PRECI 3D ROBOGUN

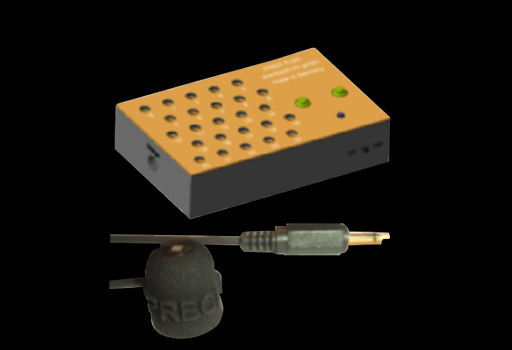

PRECI 3D FLEX

PRECI 3D GUN is a multi-face and light weight touch measurement tool for PRECI 3D TRACK system. It is ergonomically designed tool to fit most of the measurement tasks. It has active emitters on its all three faces which gives the user more degrees of freedom.

FLEX IR Sensors Min. I – Max. 25
PRECI 3D BOX 25 x 2mm Receptacle, 2 – Buttons, Battery, Charge plug, Status LED, Power Switch
Communication Wired(Length : 10m)/ wirless
Connection 2.5mm Standard Jack with ~ 1.8m Cable
Placement Magnet / double sided adhesive tape
Speed ~ 1.1 msec / Sensor
Accuracy 30 μ Single Point
weight Working Temperature

PRECI 3D ROBOGUN

Is a revolutionary product for robot path planning and real time teaching. Tracking a robot is really a complex job and need hours of programming to teach a simple path. The motivation behind developing this revolutionary product was to make this task simple for users. One needs to align the tracker to the robot base by measuring few points and move the ROBOGUN freely in the hand. Robot follows the same path after checking itself for singularities and collisions (Need simulation software.)

IR Sensors 20 OGM
Communication WireLess (RF)
Faces 8 (Auto Select)
Tip Robot Welding- Torch Connection & M5 Ruby Ball & Sharp Tip
Buttons 7 Ergonomic Buttons
Power Compact Mobile Charger
Working Time >5hr when fully charged
Software Mercator - Sikora GMBH SKM DCAM - SKM Informmatik
Calibration Only Factory Calibration (User Calibration Correction Module Avaiable)
Transport Specially Designed Protective Case
Add On Module Robot Welding Torch

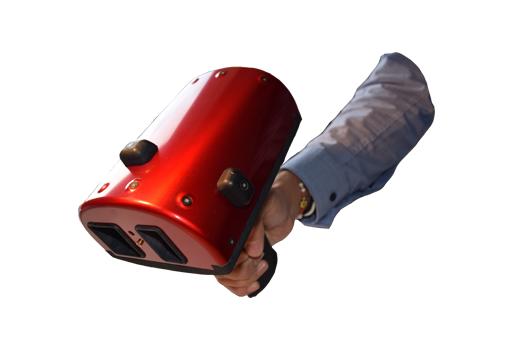

PRECI 3D SCAN 50

Is an arm free 3D scanning system. Preci3D SCAN delivers a point cloud directly in 3D without doing extra work like spraying or sticking targets on the part. Active emitters are already placed on the line scanner which gives 3D position directly in tracker base . needs no preparation time before scanning. It is factory calibrated and does not need daily calibration. An optional, easy to use tool is also provided along with the Preci3D SCAN on user request to check the scanning quality and to calibrate if higher accuracies are needed.

Resolution X -axis 1280 points/profile
Linearity +/- 0.160% FSO
Start | End Measurment Range Z : 95 mm| 120mm
X: 42 mm | 58mm
Extended Range Start | End Measurment Range Z : 65 mm| 125mm
X: 40 mm | 60mm
Mid Measurment Range Z : 95mm
Mid Measurment Range Z : 95mm
Laser Class 1) 2M (Default) 2) 3R(Optional)
Light Source 405nm@ Blue
Speed Up To 200 Hz
Aperture angle Laser Line 25°
Surface 25°
White to Black
Dull to Shiny Surface
25°
Software Interface 3D Reshaper | Geomagic | Power Inspect | Point Master | PolyWorks
Pc Interface Ethernet
Working Temperature Range > 16 °c to < 35 °c
Transport Specially Designed Protective Case
*Standard Measuring Range

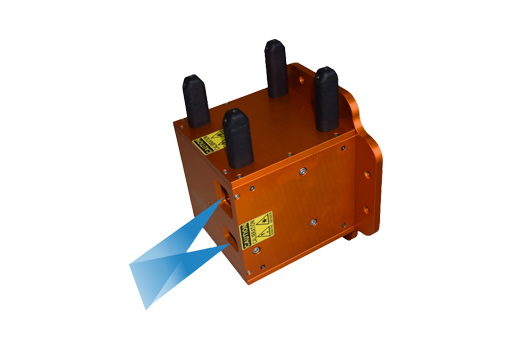

PRECI-3D-ROBOLINESCAN

For In Line Scanning of parts automated with Robot Application: In line Scanning

Resolution X -axis 1280 points/profile
Linearity 1) +/- 0.160% FSO
Start | End Measurment Range Z : 70 mm| 120mm X: 42 mm | 58mm
Extended Range Start | End Measurment Range Z : 65 mm| 125mm X: 40 mm | 60mm
Laser Class 1) 2M (Default) 2) 3R(Optional)
Light Source 405nm@ Blue
Speed Up To 200 Hz
Aperture angle Laser Line 25°
Surface White to Black Dull to Shiny Surface
Software Interface FreeHand MultiSoft | 3DReshaper | Geomagic | PolyWorks
Auto Joint Connection for Robot

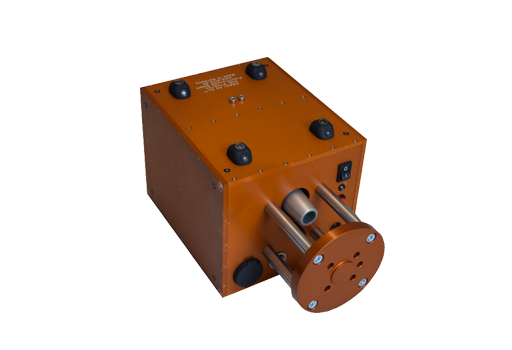

PRECI-3D-CONFOCAL

CONFOCAL is an extraordinary sensor that, combined with the PRECI 3D TRACK, measures transparent objects like glass along with its thickness. It gives the same point in 3D and can be handled by robot. It makes the system completely automatic.

Linearity(Displacement Measurement) 1D - Up to 7.5(2)µm(2σ)* 2D - Up to 60µm(2σ)*
Linearity(Thickness Measurement) 1D - Up to 16µm(2σ)* 2D -Up to 70µm(2σ)*>
Start of Measurement Range 100mm
Measurment Range 30mm
Resolution 180mm
Spot Diameter 50µm
Max Tilt* ±9°
Speed Ca. 150hz(Single Point @ ca. < 7 mSec)
Weight 780
Software Interface Power Inspect | Geomagic
PC Interface Ethernet | USB(2.0 | 3.0 )
Poly Preci Trackers 0.Master - 1.Slave - 2.Slave - 3.Slave . . .n (For Complex & Big Sized Parts)
Working Temperature 16°c to < 35 °c
Transport Specially Designed Case
